Beomaster 900 M 2237

• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73710

• • Brand: B&O

• Picture

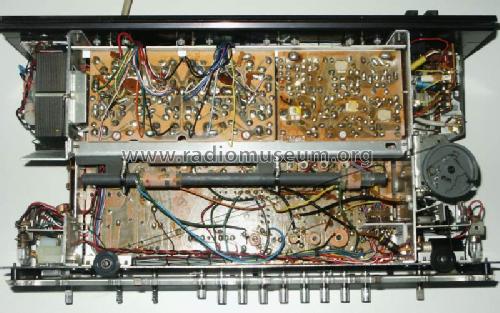

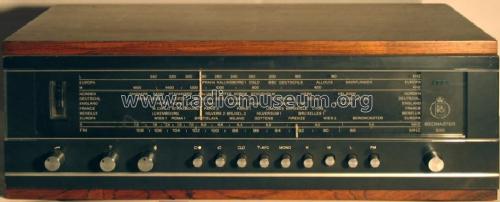

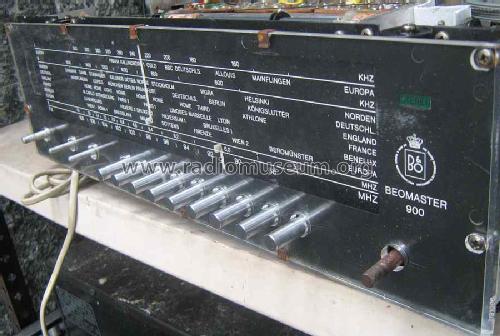

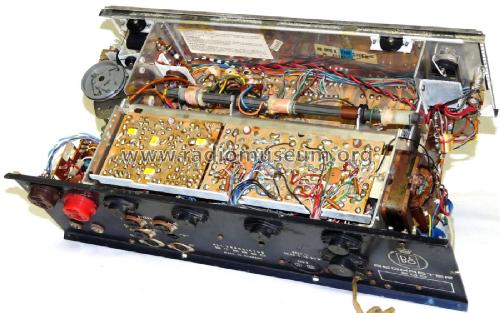

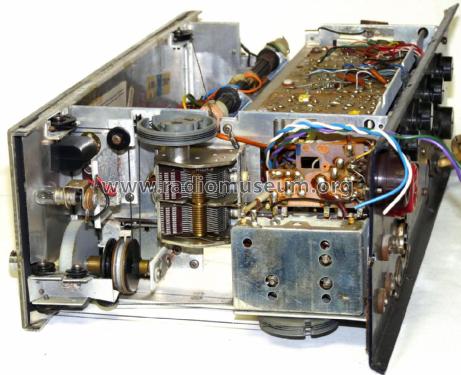

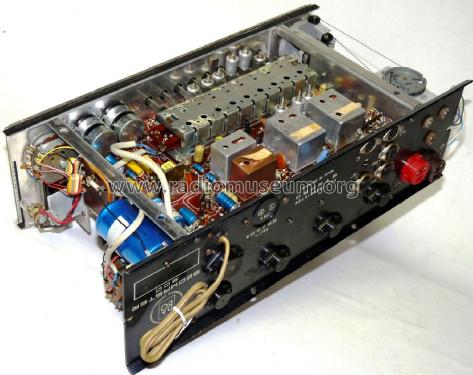

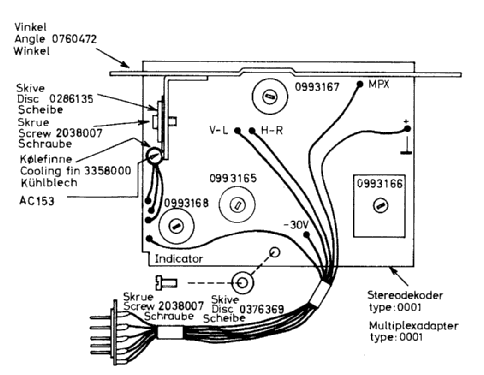

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Beomaster 900 M 2237 - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 404 x 143 x 237 mm / 15.9 x 5.6 x 9.3 inch

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 748.00 DM

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Ekkehard Pfau. See "Data change" for further contributors.
