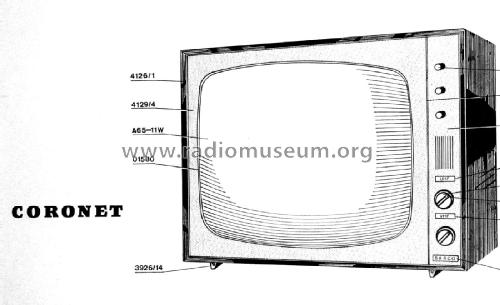

Coronet Ch= 66-5N-13B
Barco, Belgian American Radio Corporation / Cobar; Poperinge
- Country
- Belgium
- Manufacturer / Brand
- Barco, Belgian American Radio Corporation / Cobar; Poperinge
- Year
- 1966 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 354032
Q = original-techn. papers
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- PC900 PCF801 EF183 PFL200 PCH200 PCC85 PCF80 PCL85 PCF80 PCF80 PL500 PY88 DY87 A59-11W or A59-16W or A65-11W
- Number of Transistors
- 8
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Coronet Ch= 66-5N-13B - Barco, Belgian American Radio
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Transistors (and diodes) only listed once per type.
- Literature/Schematics (1)
- -- Original-techn. papers. (Barco Service Coronet / Coronet Sonar)
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
