• Country
• Belgium

• Manufacturer / Brand
• Barco, Belgian American Radio Corporation / Cobar; Poperinge

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296114

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

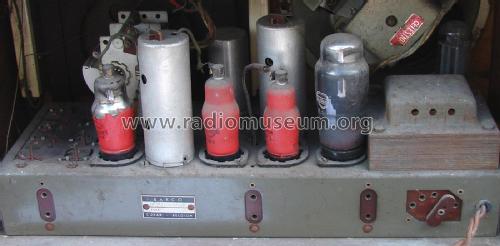

• ECH4 EBF2 EBF2 EL3N EM4 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

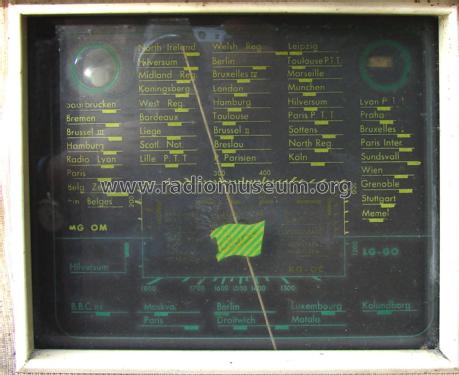

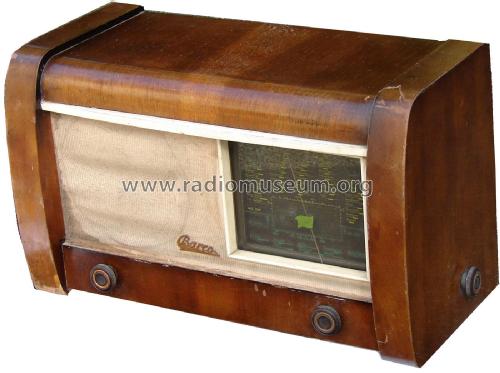

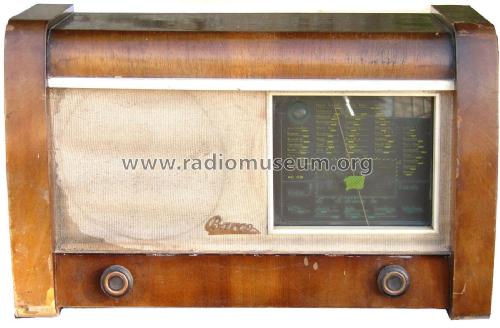

• Model: Eros A693P - Barco, Belgian American Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 320 x 250 mm / 20.5 x 12.6 x 9.8 inch

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by Alex Baerts. See "Data change" for further contributors.
