• Country
• Belgium

• Manufacturer / Brand
• Barco, Belgian American Radio Corporation / Cobar; Poperinge

• Year
• 1967 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 353153

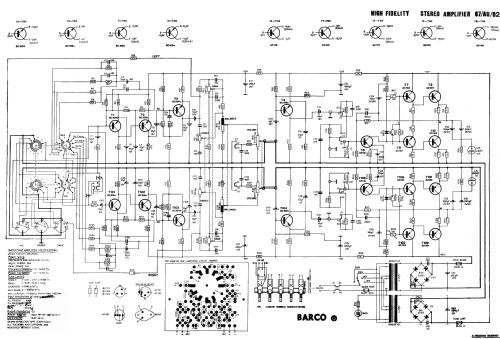

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• BC109C AF118 AC127 AC132 AD149

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6.5 W (13 W max.)

• from Radiomuseum.org
• Model: High Fidelity Stereo Amplifier 67/AU/02 - Barco, Belgian American Radio

• Notes

• Input sensitivities at 1 kHz (P out = 6,5 W):
   - P.U. Cristal: 6 mV
   - P.U. Magnetic: 2 mV
   - Radio: 40 mV
   - Tape: 50 mV

  Output impedance: 5 Ohm.

  Transistors listed one per type.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
