• Country
• Belgium

• Manufacturer / Brand
• Barco, Belgian American Radio Corporation / Cobar; Poperinge

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192081

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF127 AF127 AF127 AC127 AC128 AC127 AC128

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.65 W (unknown quality)

• from Radiomuseum.org

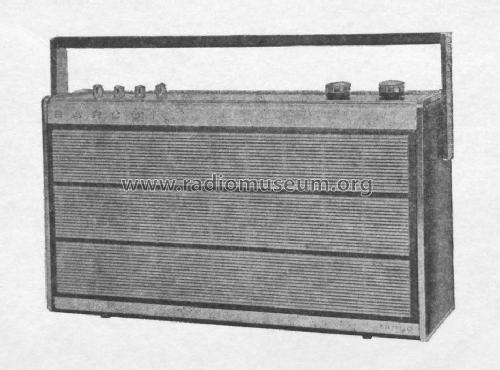

• Model: Tango Ch= 68-RT-04 - Barco, Belgian American Radio

• Shape
• Portable set > 8 inch (also usable without mains)

• Source of data

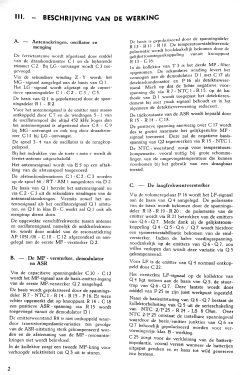

• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 92 models, 78 with images and 27 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
