• Country
• Belgium

• Manufacturer / Brand
• Barco, Belgian American Radio Corporation / Cobar; Poperinge

• Year
• 1966 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 342412

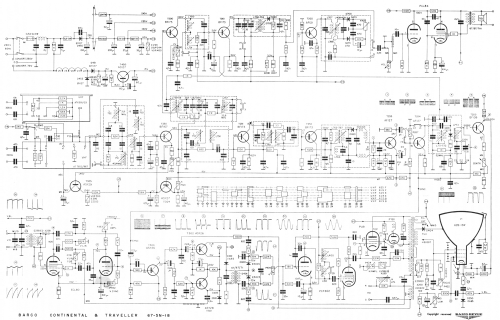

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• PCL84 ECL80 PCF802 PL81 PY81 A28-13W

• Number of Transistors
• 20

• Semiconductors
• AF186 AF180 AF178 BF167 BF173 AF127 AF121 BF109 ASY29 ASY27 AC127 OA95 OA90 OA79 OA85 E50C5 TV11 BY127

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Traveller Ch= 67-5N-18 - Barco, Belgian American Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 305 x 280 mm / 15.2 x 12 x 11 inch

• Notes

• Barco Traveller portable 5-Norm Television Receiver.

  May be powered by a 12 V car battery, using the Traveller Converter 12V.

  Each solid state device listed once only.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Price in first year of sale
• 995.00 CHF

• Mentioned in

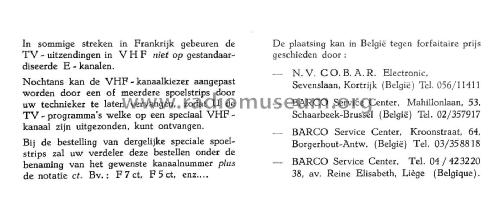

• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Thierry Oget. See "Data change" for further contributors.
