• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243304

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

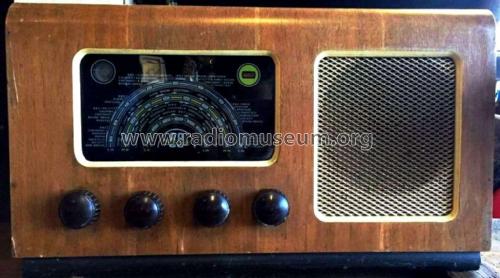

  • Model: Barker 88 [Intermediate] - Barker, John & Co. Ltd.
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • See Early 88 with perhaps same chassis, but different case and scale.

    See Late 88 with definitely a different chassis and miniature valves. The cabinet is similar to the "late" version but has the logo and magic eye reversed. Magic Eye is on left corner of scale on this version.

    Note the station name Luxembg. at MW 208 m, the transmissions started in July 2nd 1951 at this frequency.

    Push-pull output stage "Magic Eye" tuning indicator. This set was probably not made by Barker who were only a retail outlet.

  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Michael Watterson. See "Data change" for further contributors.
