National Panasonic FM-MW-SW RF-817W
Barlow-Wadley Barlow's; South Africa
- Country
- South Africa
- Manufacturer / Brand
- Barlow-Wadley Barlow's; South Africa
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338525
Manufacturer documentation

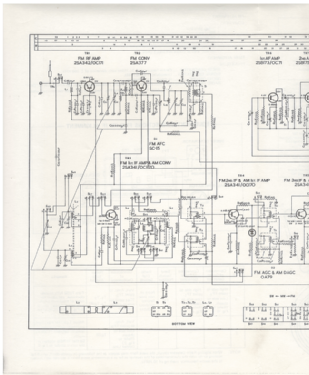

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- 2SA342 2SA377 2SA341 2SA341 2SA341 2SB173 2SB175 2SB178 2SB178 OA79 OA79 OA79 OA79 SC-15
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s) 6 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / C: 3 x1.5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 9 cm = 3.5 inch
- Power out
- 0.56 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic FM-MW-SW RF-817W - Barlow-Wadley Barlow's; South
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10 x 5.5 x 3 inch / 254 x 140 x 76 mm
- Notes
-
National Panasonic FM/MW/SW Portable Radio.
Made under license to Matsushita Electric Industries, Japan.
- Net weight (2.2 lb = 1 kg)
- 1.6 lb (1 lb 9.6 oz) / 0.726 kg
- Mentioned in
- - - Manufacturers Literature (Model RF-817W Radio Service Manual)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Steve Rich. See "Data change" for further contributors.
