• Country
• Germany

• Manufacturer / Brand
• BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

• Year
• 1979

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 141558

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org

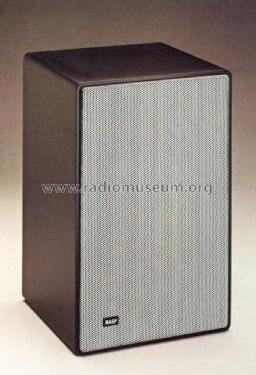

• Model: 8380 - BASF, Badische Anilin- & Soda-

• Dimensions (WHD)
• 285 x 440 x 240 mm / 11.2 x 17.3 x 9.4 inch

• Notes
• 3-Wege-HiFi-Lautsprecherbox mit 95 Watt, Impedanz 4-8 Ohm, Übertragungsbereich 25-30000Hz.
  1 Kalotten-Hochtöner
  1 Kalotten-Mitteltöner
  1 Tieftöner
  1 Frequenzweiche (Trennung bei 800 und 2200 Hz).
  Gehäusefarbe Schwarz, Boxengitter abnehmbar.

• Net weight (2.2 lb = 1 kg)
• 9.3 kg / 20 lb 7.8 oz (20.485 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
