- Country
- Germany
- Manufacturer / Brand
- BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen
- Year
- 1975–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 125146
Basf Katalog 1976 - Seite 17
Ein Schiebeknopf fehlt
- Number of Transistors
- 21
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player

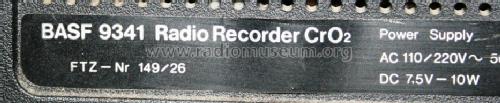

- Power type and voltage
- Line / Batteries (any type) / 110; 220 / 5×1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

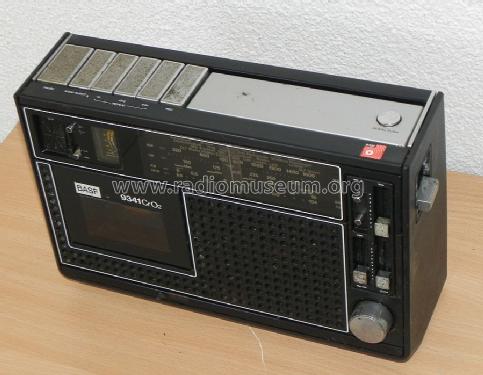

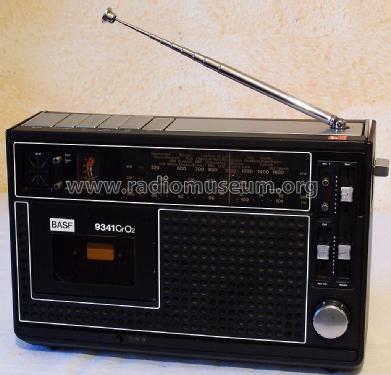

- Model: 9341 - BASF, Badische Anilin- & Soda-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 314 x 217 x 108 mm / 12.4 x 8.5 x 4.3 inch
- Notes
-
CrO2-Radio-Recorder. Eingebautes Kondensator-Mikrofon.
Halbleitertypen nur einmal aufgeführt
- Net weight (2.2 lb = 1 kg)
- 3.2 kg / 7 lb 0.8 oz (7.048 lb)
- Source of data
- Handbuch VDRG 1975/1976
- Mentioned in
- Handbuch VDRG 1976/1977 (und 1977/78)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
