CC Recorder 9201

• Country
• Germany

• Manufacturer / Brand
• BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

• Year
• 1973/1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29147

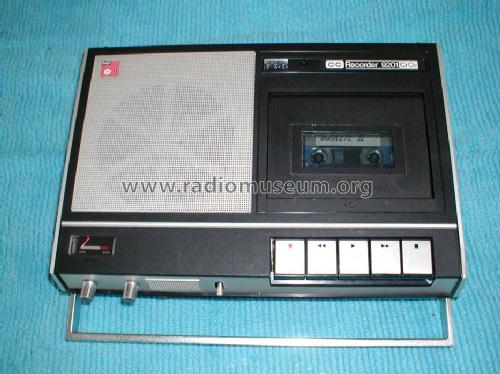

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CC Recorder 9201 - BASF, Badische Anilin- & Soda-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 296 x 68 x 203 mm / 11.7 x 2.7 x 8 inch

• Notes
• Verwendbar für Chromdioxid-Kassetten.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
