• Country
• Germany

• Manufacturer / Brand
• BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

• Year
• 1975–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 108199

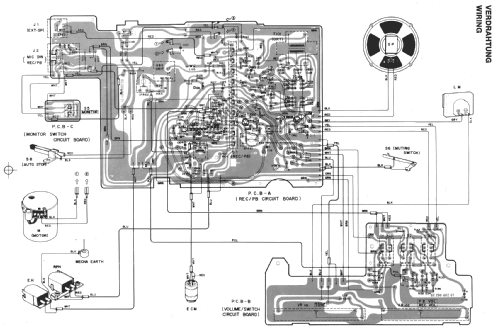

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-220 / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CC-Recorder 9210 Automatic - BASF, Badische Anilin- & Soda-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 80 x 230 mm / 12.8 x 3.1 x 9.1 inch

• Notes

• BASF Toploading Mono Cassetten-Rekorder Modell 9210.
  Automatische Bandsortenumschaltung
  VU-Meter, Frequenzumfang 63 - 10000Hz
  Bandzählwerk, Autostop

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 199.00 DM

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 1977/78)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
