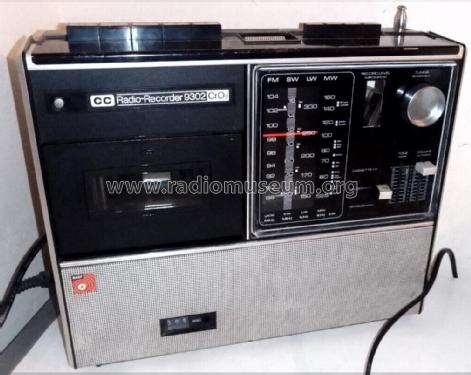

CC Radio-Recorder 9302 CrO2
BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen
- Country
- Germany
- Manufacturer / Brand
- BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen
- Year
- 1974/1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29417
- Number of Transistors
- 11
- Semiconductors
- Main principle
- ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / AC: 110-120; 220-240 / D: 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CC Radio-Recorder 9302 CrO2 - BASF, Badische Anilin- & Soda-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 299 x 250 x 90 mm / 11.8 x 9.8 x 3.5 inch
- Notes
-
Eingebautes Electret-Mikrofon.
Das Handbuch VDRG nennt ein Gewicht von 3,15 kg m. Batterien. Das tatsächliche Gewicht wurde dagegen mit 3,525 kg ermittelt.
- Net weight (2.2 lb = 1 kg)
- 3.150 kg / 6 lb 15 oz (6.938 lb)
- External source of data
- Erb
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in

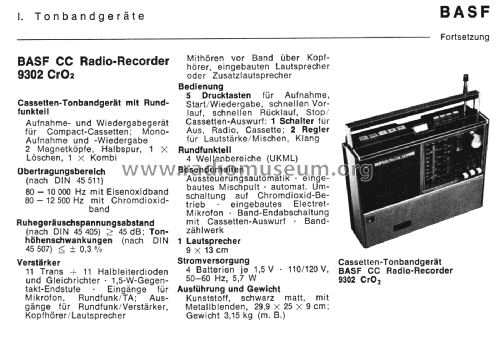

- Handbuch VDRG 1974/1975 (S.I3)
