• Country
• Germany

• Manufacturer / Brand
• BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119868

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 55 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

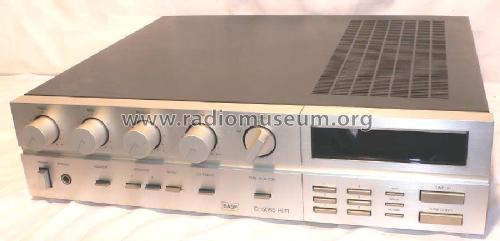

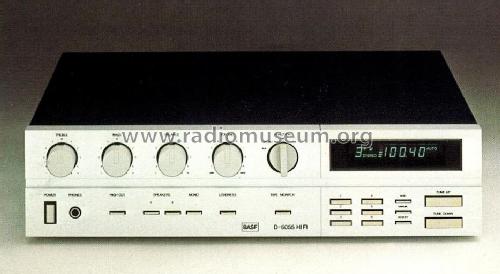

• Model: D5055 - BASF, Badische Anilin- & Soda-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 425 x 110 x 380 mm / 16.7 x 4.3 x 15 inch

• Notes
• Nur digitale Frequenzanzeige. 6 FM-Speichertasten. 4 LS-Buchsen. Eingänge: Phono, Aux und Tape.

• Net weight (2.2 lb = 1 kg)
• 10.3 kg / 22 lb 11 oz (22.687 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• Funkschau (21/1979, S. 1209 / Internationale Funkausstellung)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
