HiFi Endverstärker D 6530

BASF, Badische Anilin- & Soda-Fabrik, EMTEC; Ludwigshafen

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 341664

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 70 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: HiFi Endverstärker D 6530 - BASF, Badische Anilin- & Soda-
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 210 x 71 x 208 mm / 8.3 x 2.8 x 8.2 inch
  • Notes

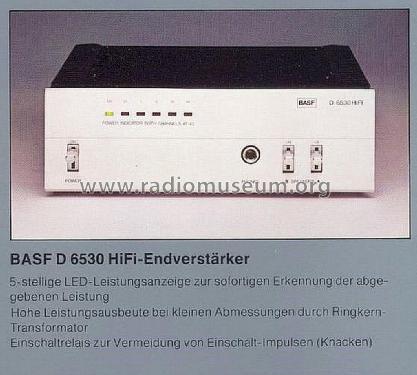

  • BASF HiFi-Mini Komponente Modell BASF D 6530 HiFi-Endverstärker

    2 x 35 Watt Sinus bei 1 kHz und 1% Klirrfaktor an 4 Ω
    2 x 42 Watt Musikleistung an 4 Ω

    10 - 50000 Hz (± 1 dB)

    5-stellige LED-Leistungsanzeige

  • Net weight (2.2 lb = 1 kg)
  • 3.7 kg / 8 lb 2.4 oz (8.15 lb)
  • Mentioned in

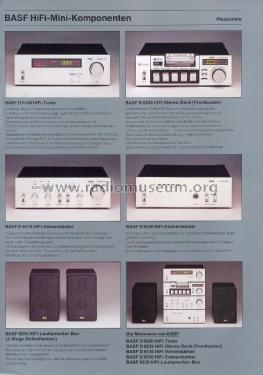

  • -- Original prospect or advert (BASF - Die Minimaxis)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
