Radio Recorder 9340
BASF, Badische Anilin- & Soda-Fabrik, EMTEC; Ludwigshafen
- Country
- Germany
- Manufacturer / Brand
- BASF, Badische Anilin- & Soda-Fabrik, EMTEC; Ludwigshafen
- Year
- 1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251537
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / D: 5 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

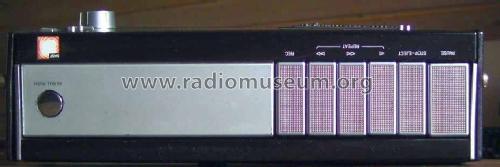

- Model: Radio Recorder 9340 - BASF, Badische Anilin- & Soda-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 325 x 210 x 110 mm / 12.8 x 8.3 x 4.3 inch
- Notes
-
Eingebautes Kondensator - Mikrofon. Drehspulinstrument für Aufnahme - Level oder Batterie - Check. Versenkbare Teleskopantenne mit großem End - Käppchen, welches auch als Druckknopf dient.
- Net weight (2.2 lb = 1 kg)
- 5.9 kg / 12 lb 15.9 oz (12.996 lb)
- Mentioned in
- Funk-Technik (FT) (17/1975, S. 552 / Neuvorstellung)
- Author
- Model page created by Ottmar Lauth. See "Data change" for further contributors.
