• Country
• Germany

• Manufacturer / Brand
• Bauer, Eugen; Stuttgart

• Year
• 1955 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114157

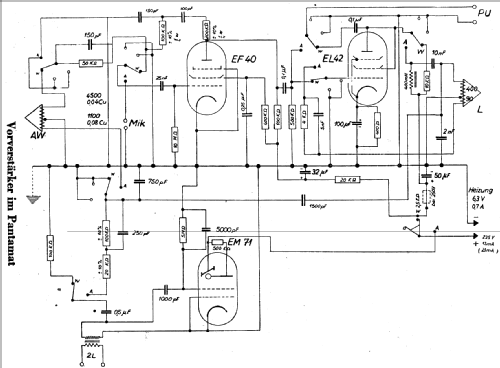

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF40 EL42 EM71

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Pantamat - Bauer, Eugen; Stuttgart

• Notes
• Magnetbandgerät zur Vertonung von 8-mm-Filmen mit dem Bauer-Pantalux 8. Bandgeschwindigkeit: 19 cm/s.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.

• Other Models

• Here you find 28 models, 25 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
