Speaker HX 125
BEAG - Budapesti Elektroakusztikai Gyár; Budapest
- Country
- Hungary
- Manufacturer / Brand
- BEAG - Budapesti Elektroakusztikai Gyár; Budapest
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 248833
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
- Power out
- 12 W (12 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Speaker HX 125 - BEAG - Budapesti
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 140 x 125 x 60 mm / 5.5 x 4.9 x 2.4 inch
- Notes
-
- HX 125-4: 4Ω
- HX 125-8: 8 Ω
- HX 125-16: 16 Ω
- 40-20.000Hz
- rezonance fr.: 60Hz
- Rated sensitivity 1m/1VA: 88dB
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Source of data

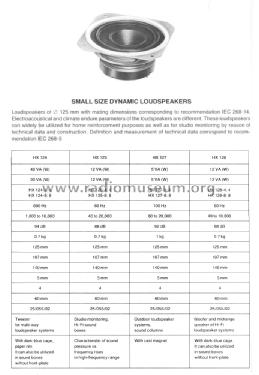

- -- Original-techn. papers.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
