• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1968/1969

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 27479

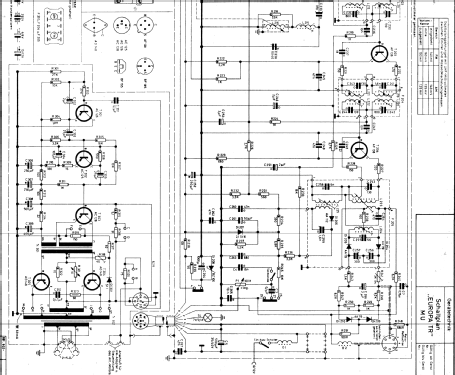

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BF185 BF185 BF195 AF138 AF138 AF138 AF138 AC126 AC125 AC128 AD148 AD148 AA119 AA112 BA121

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Europa TR MU [ab B83340] - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 52 x 150 mm / 7.1 x 2 x 5.9 inch

• Notes

• Technische Daten wie Europa LMKU, jedoch Wellenbereiche UM.
  Verstärkerteil: 150×52×83 mm.

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)

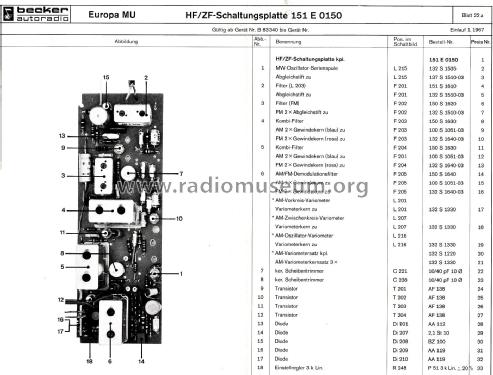

• -- Original-techn. papers. (Katalog, Ersatzteile und Zubehör)
