- Country
- Germany
- Manufacturer / Brand
- Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
- Year
- 1956–1963
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 20925

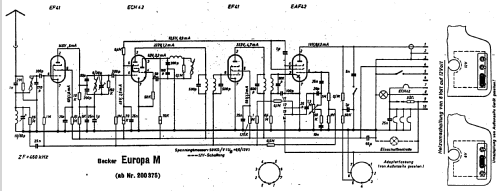

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 3.7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Europa M - Becker, Max Egon,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 181 x 80 x 174 mm / 7.1 x 3.1 x 6.9 inch
- Notes
- Anschlüsse für automatische Antenne und KW-Adapter.
Zerhackerteil: 250×122×87 mm.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Price in first year of sale
- 225.00 DM
- External source of data
- Erb
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- HdB d.Rdf-& Ferns-GrH 1956/57 (bis 1962/63)
