• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1961–1964

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 24586

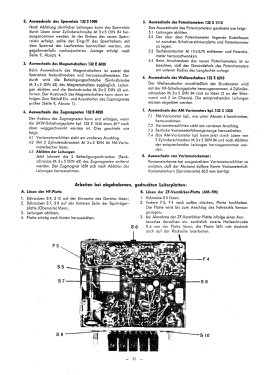

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 ECF83 ECC82

• Number of Transistors

• Semiconductors
• OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Powered by external power supply or a main unit. / DC: 92 & 6 or 12 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

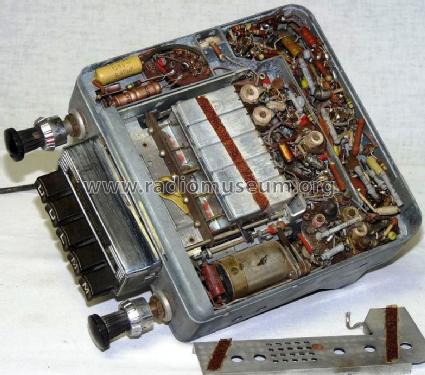

• Model: Grand Prix TG - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 93 x 188 mm / 7.1 x 3.7 x 7.4 inch

• Notes

• Automatische Senderwahl, Drucktastenabstimmung.
  2 Metallgehäuse: Empfängerteil und Stromversorgungsteil (180×54×90 mm).

  This unit needs a power supply module with output amplifier for the loudspeakers. That unit delivers the 92 Volt anode voltage as well as 6 or 12 Volt for the filaments.

  There are 2 possible modules available: Umrichter TG 4 Watt  or  Umrichter TG 7 Watt.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Price in first year of sale
• 595.00 DM

• External source of data
• Erb

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1962/1963 (bis 1963/64)
