• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1954–1956

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 19737

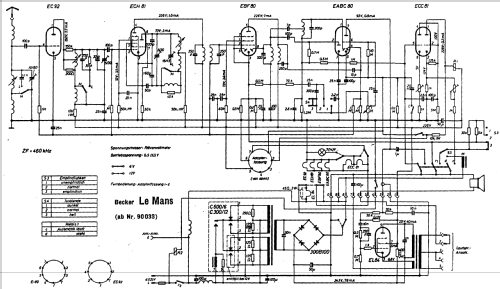

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EC92 ECH81 EBF80 EABC80 ECC81 EL84

• Number of Transistors

• Semiconductors
• C600/6 or. C300/12 B300C100

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3.7 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Le Mans - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 184 x 54 x 192 mm / 7.2 x 2.1 x 7.6 inch

• Notes

• Automatische Sendereinstellung; Anschlüsse für Fernbedienung, automatische Antenne, Gehäuse 2-teilig, Zerhackerteil: 233×120×88 mm.
  Anschlussmöglichkeit für Kurzwellenadapter Reims.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 545.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
