• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1982

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 154519

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 12 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

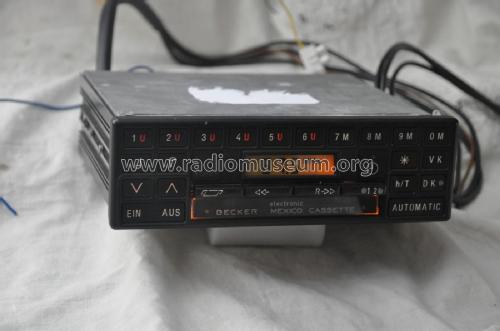

• Model: Mexico Cassette electronic 610/614 - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 182 x 52 x 162 mm / 7.2 x 2 x 6.4 inch

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

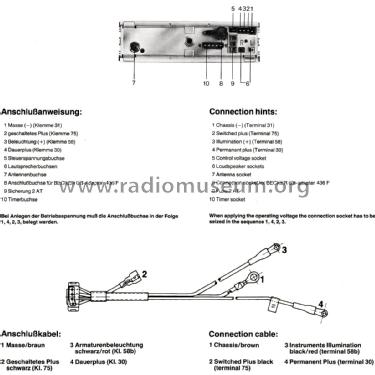

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
