- Country
- Germany
- Manufacturer / Brand
- Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
- Year
- 1951/1952
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 14021
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif. B822/12
- Main principle
- Superhet with RF-stage; ZF/IF 473 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Nürburg 1 - Becker, Max Egon,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 280 x 110 x 165 mm / 11 x 4.3 x 6.5 inch
- Notes
- Spezialausführung für BMW 501 und Mercedes 300S. 3 KW-Bereiche. Je nach Wagentyp 2 bis 4 Lautsprecher 130 mm Ø dazugehörig.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Price in first year of sale
- 780.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb

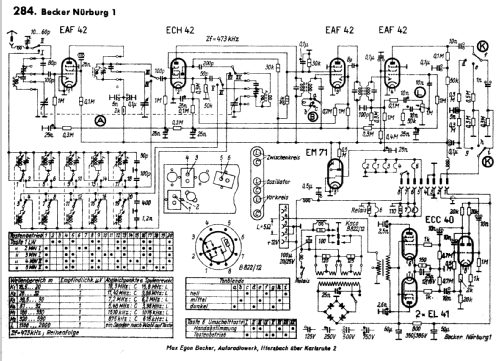

- Circuit diagram reference
- Lange Schaltungen der Funkindustrie, Buch 1
- Mentioned in
- Funkschau (5111)
