Peony 牡丹 551-BJ
Beijing 北京无线电器材厂 Beijing Radio Equipment Factory; Beijing
- Country
- People's Republic of China
- Manufacturer / Brand
- Beijing 北京无线电器材厂 Beijing Radio Equipment Factory; Beijing
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177593
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 1.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Peony 牡丹 551-BJ - Beijing 北京无线电器材厂 Beijing Radio
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 270 x 215 mm / 16.5 x 10.6 x 8.5 inch
- Notes
- The model family of battery radios Beijing 561-A, 561-B and 561-C share the same documentation on page 275 ff - as the export versions Peony 551-AJ, 551-BJ and 551-CJ. All those models receive broadcast band 520 - 1600 kHz and two SW bands, 11.5 - 23 MHz and 5.7 - 11.7 MHz. This is 13 through 52 m. They have 3 IF filters. We don't know yet the differences between those models.
- Literature/Schematics (1)

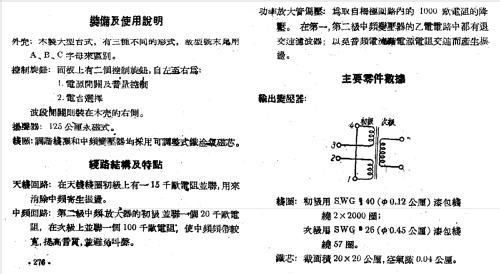

- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 275.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
