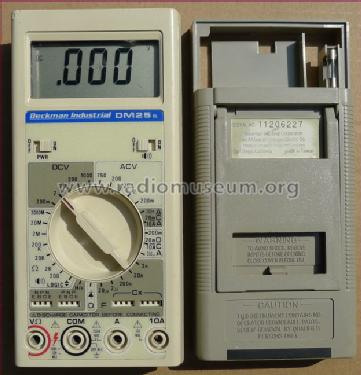

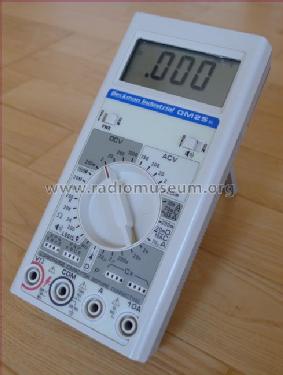

Digital multimeter DM25 XL
Beckman Instruments, Shasta, Shockley; Richmond (CA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Beckman Instruments, Shasta, Shockley; Richmond (CA)
- Year
- 1982 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 254217
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 1 x 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital multimeter DM25 XL - Beckman Instruments, Shasta,
- Dimensions (WHD)
- 80 x 165 x 38 mm / 3.1 x 6.5 x 1.5 inch
- Notes
-
V DC: 200m, 2, 20, 200, 1000
V AC: 200m, 2, 20, 200, 750
mA DC: 200µ, 20, 200, 10A
mA AC: 20, 200, 10A
Ω: 200, 2k, 20k, 200k, 2M, 20M, 2000M
F: 2n, 20n, 200n, 2µ, 20µ,
Durchgangsprüfung, Logic, Diodentest, Transistoren hFE.
- Net weight (2.2 lb = 1 kg)
- 0.310 kg / 0 lb 10.9 oz (0.683 lb)
- Author
- Model page created by Rudolf Nemeth. See "Data change" for further contributors.
