• Country
• Great Britain (UK)

• Manufacturer / Brand
• Westminster (Brand), Belcher Ltd. & Others Unknown; London

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128009

• • Brand: Westminster

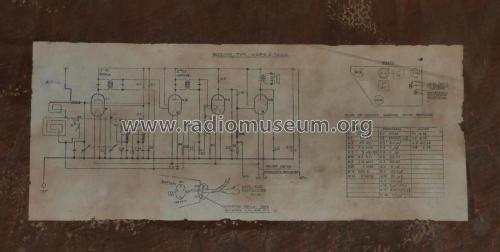

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• X14 Z14 HD14 N14

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Westminster Radio A.D.P.6. [Portable - N14] - Westminster Brand, Belcher Ltd

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13 x 11.5 x 8 inch / 330 x 292 x 203 mm

• Notes

• Image of Big Ben on dial pointer. Cabinet has two tone crackle effect paint on wood. Turntable fixed to base of set (to rotate it for best direction of frame aerial).  There is also a table model in a veneer case, without handle. Later B7G (miniature 7 pin) versions differ in cabinet style but are based on the same chassis as was common 1946 to 1948 in the U.K.

  See also Westminster Radio A.D.P.6 [portable - N16] (with N16 as final amplifier).

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
