2+1

Belgráder Rádió, Budapest

Data

Forum

Pictures

Collections

Country
Hungary

Manufacturer / Brand
Belgráder Rádió, Budapest

Year
1936 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
238064

Schematics

2+1; Belgráder Rádió, (ID = 3073608) Radio — Belgráder Rádió, 2+1 (2)

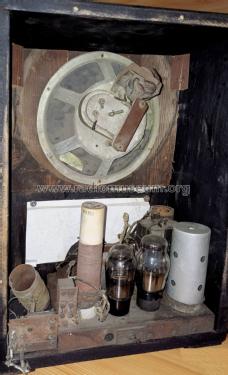

2+1; Belgráder Rádió, (ID = 3073614) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 3073612) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 3073611) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 3073610) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 1481036) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 1481038) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 1481040) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 1481041) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 1481043) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 1481044) Radio — Belgráder Rádió, 2+1 (2)

2+1; Belgráder Rádió, (ID = 1481045) Radio — Belgráder Rádió, 2+1 (2)

Technical Specifications

Number of Tubes
3

Valves / Tubes

Main principle
TRF (Tuned-Radio-Frequency but use of regeneration unknown)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
Magnetic loudspeaker (reed) of high quality (4 magnet poles).

Material
Wooden case

from Radiomuseum.org
Model: 2+1 - Belgráder Rádió, Budapest

Shape
Tablemodel, high profile (upright - NOT Cathedral nor decorative).

Dimensions (WHD)
340 x 440 x 170 mm / 13.4 x 17.3 x 6.7 inch

Net weight (2.2 lb = 1 kg)
5 kg / 11 lb 0.2 oz (11.013 lb)

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
