Projector amplifier 13728
Bell & Howell, Wheeling (Illinois)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bell & Howell, Wheeling (Illinois)
- Year
- 1950 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 290782
-
- Brand: DeVry
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

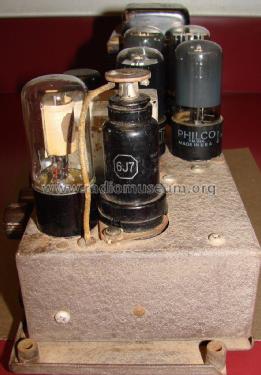

- Model: Projector amplifier 13728 - Bell & Howell, Wheeling
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12 x 5.5 x 4.5 inch / 305 x 140 x 114 mm
- Notes
-
Projector amplifier, with oscillator for exciter lamp;
has Phonograph and Microphone inputs.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
