• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203322

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K8G 6U7G 6Q7G 6V6G 6U5 or 6H5 5Z4G

• Main principle
• Superheterodyne (common); ZF/IF 445 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115; 125; 135; 150; 225; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

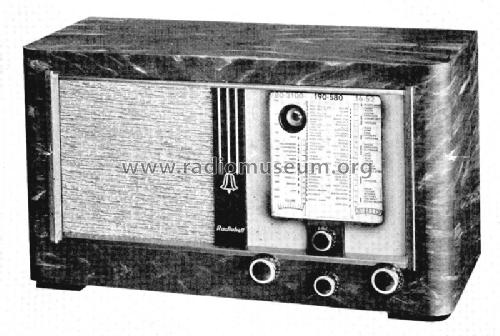

• Model: Radiobell 1450 - Bell Telephone Mfg. Co.

• Notes
• Manuel de la Radio lists "6K8 6U7 6Q7 6V6 6U5 5Z4".
  Extended short wave band from 16 to 52m.

• Price in first year of sale
• 1,690.00 BFR

• Source of data
• -- Original prospect or advert

• Mentioned in
• Manuel de la Radio 1940, van Cortenberghe

• Literature/Schematics (1)
• Radio Schema's, Deel II
