• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203323

• • Brand: Radiobell

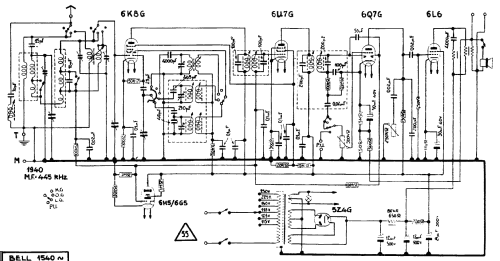

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6G8G 6U7G 6Q7G 6L6G 6U5 5Z4G

• Main principle
• Superheterodyne (common); ZF/IF 445 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115; 125; 135; 150; 225; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiobell 1540 - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, low profile (big size).

• Notes
• The "Manuel de la Radio" lists "6G8 6U7 6Q7 6L6 6U5 5Z4".

• Price in first year of sale
• 2,390.00 BFR

• Source of data
• -- Original prospect or advert

• Mentioned in
• Manuel de la Radio 1940, van Cortenberghe
