Cadet Unk 4 valve AC
Bell Radio-Television Corporation Ltd.; Auckland
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Bell Radio-Television Corporation Ltd.; Auckland
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245660
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

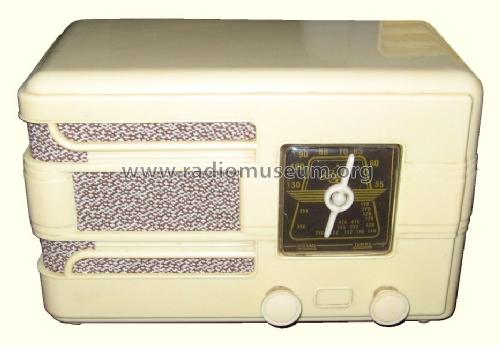

- Model: Cadet Unk 4 valve AC - Bell Radio-Television
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 263 x 168 x 130 mm / 10.4 x 6.6 x 5.1 inch
- Notes
-
This model was originally sold under the Antone brand. The cabinet design is the same as the Australian Airzone "Cub" models 456 and 458. It was superseded by the Bell Colt in 1951, which also used an Airzone cabinet design.
- Price in first year of sale
- 14.70 NZ£
- Mentioned in
- The Golden Age of Radio in the Home 1986
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
