• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Bell Radio-Television Corporation Ltd.; Auckland

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340397

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EF89 EBC81 EL84

• Number of Transistors

• Semiconductors
• BY123

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

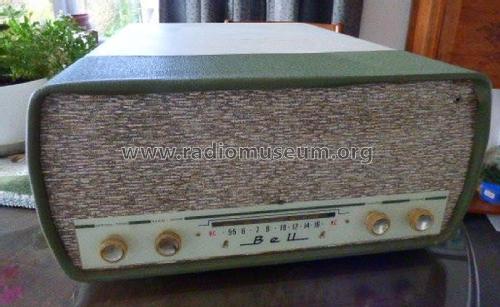

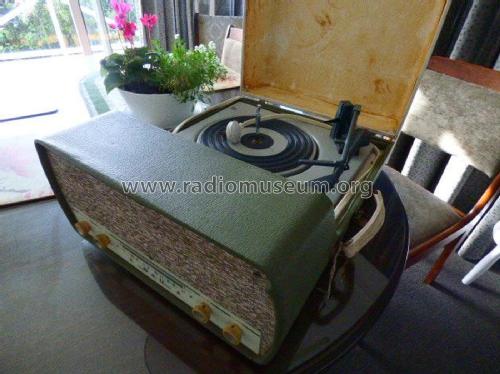

• Model: Carabell 6MB-68 - Bell Radio-Television

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 180 x 480 mm / 15 x 7.1 x 18.9 inch

• Notes

• 4-Valve superhet broadcast (MW) table model radiogram.

  Uses a BY123 silicon bridge rectifier.

  BSR 3 speed record changer.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
