- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Bell Radio-Television Corporation Ltd.; Auckland
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328497
Ebay-au_114752394845
Ebay-au_114752394845
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 462 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 230 / 67.5; 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

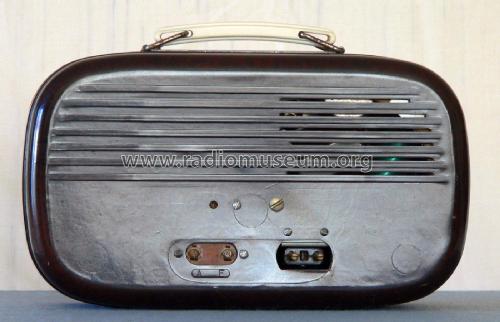

- Model: Model 1 - Bell Radio-Television
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
5 valve, AC or battery powered superhet with an RF stage. Uses a selenium rectifier of AC rectification.
- Price in first year of sale
- 21.85 NZ£
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
