• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Bell Radio-Television Corporation Ltd.; Auckland

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 355743

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF89 EBC81 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Musicale Majorette - Bell Radio-Television

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 400 x 235 x 480 mm / 15.7 x 9.3 x 18.9 inch

• Notes

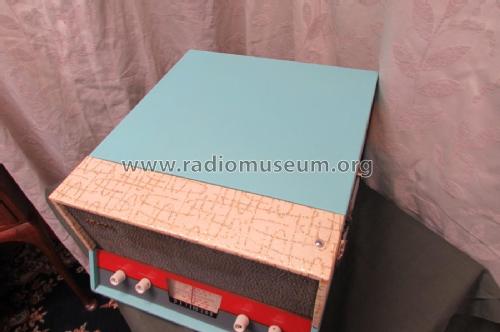

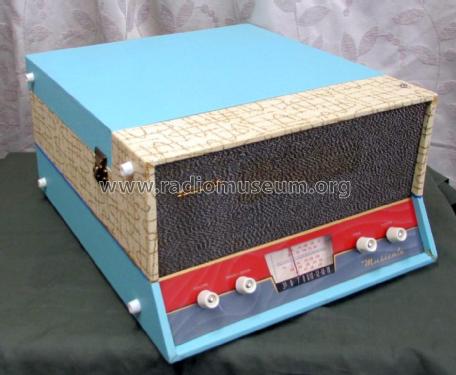

• Bell Musicale Majorette Radiogram

  A thoughtfully designed radiogram ideal for apartments or homes where space is at a premium. A powerful 5-valve radio complete with separate tone control combines with a 4-speed automatic record changer; rich 8" X 3" speaker; efficient rod aerial. Complete with removable space-saving metal-ferruled legs so the unit can be used as a free-standing or table model... £41/-/-.

  See also Bell General Lee.

• Price in first year of sale
• 41.00 NZ £

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
