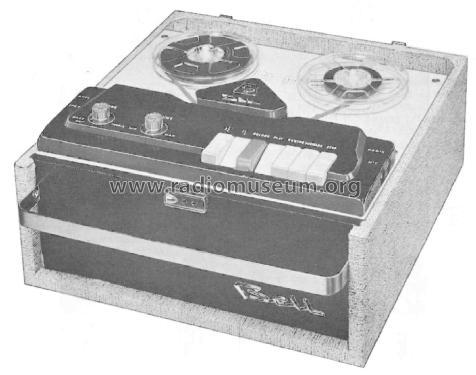

BT-2051B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Bell Sound Systems; Columbus (OH)

• Year
• 1958 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 321787

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC83 ECC83 6SN7 6V6GT 6X5GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: BT-2051B - Bell Sound Systems; Columbus

• Shape
• Tablemodel, with any shape - general.

• Notes

• The "Bell" models BT-2051B and BT-2050B are designed for two-channel stereophonic sound reproduction.The major difference in the models is that model BT-2051B recorder plays "in-line" head (sometimes called stacked head) tapes.The model BT-2050B recorder play's "offset head (sometimes called "staggered" head) tapes.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 388 Folder 6 dated 2-58)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
