• Country
• United States of America (USA)

• Manufacturer / Brand
• Bell Sound Systems; Columbus (OH)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139856

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• ECC189 ECC88 6AU6 6AU6 6AU6 6BN8 6BA6 6BE6 6BA6 6BA6 6BN8 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

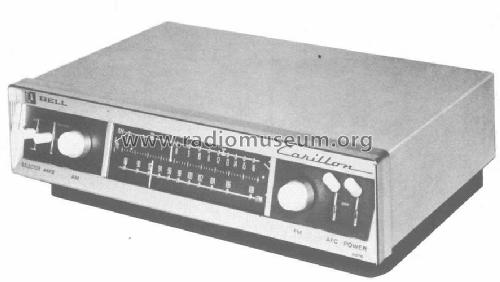

• Model: Carillon 6070 - Bell Sound Systems; Columbus

• Shape
• Tablemodel, low profile (big size).

• Notes
• AC operated AM - FM tuner.

• Price in first year of sale
• 219.95 USD

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 505 folder 3 date 11-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
