• Year
  • 1947
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 128946

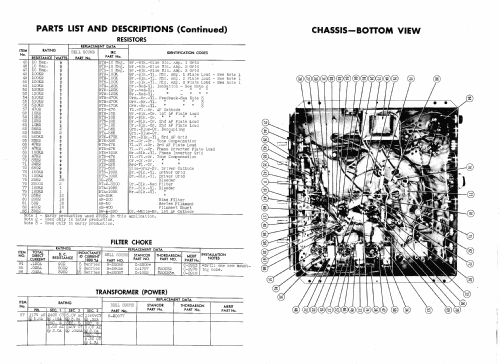

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 50-60 cycles, 117 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (88 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PA Amplifier 3750 - Bell Sound Systems; Columbus
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 16.5 x 8 x 16.5 inch / 419 x 203 x 419 mm
  • Notes
  • The Bell model 3750 is an AC operated 4 channel audio amplifier. The 4 channels are for 3 microphones and phono.
  • Net weight (2.2 lb = 1 kg)
  • 62 lb (62 lb 0 oz) / 28.148 kg
  • Literature/Schematics (2)
  • Radio Master's Catalog, 15th ed., 1950-51, pg. B-5.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
