Pacemaker 2216
Bell Sound Systems; Columbus (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bell Sound Systems; Columbus (OH)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153719
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Pacemaker 2216 - Bell Sound Systems; Columbus
- Shape
- Tablemodel, low profile (big size).
- Notes
- The Bell Sound Model Pacemaker 2216 is an AC Operated 7 Tube FM Tuner.
- Literature/Schematics (1)

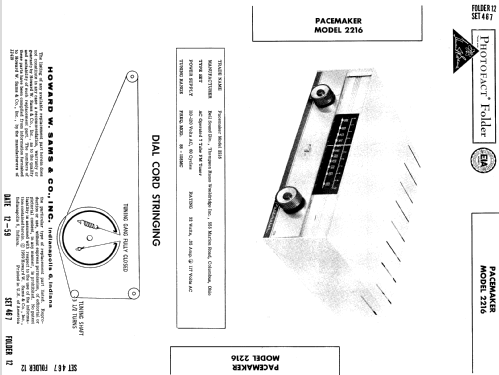

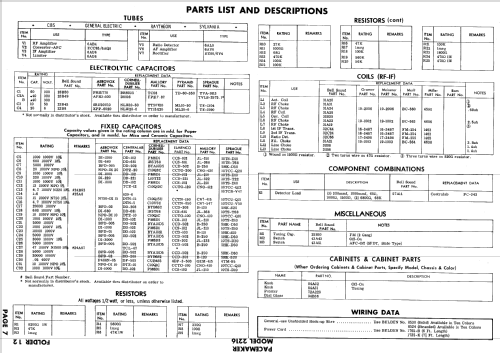

- Photofact Folder, Howard W. SAMS (Date 12-59, Set 467, Folder 12)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
