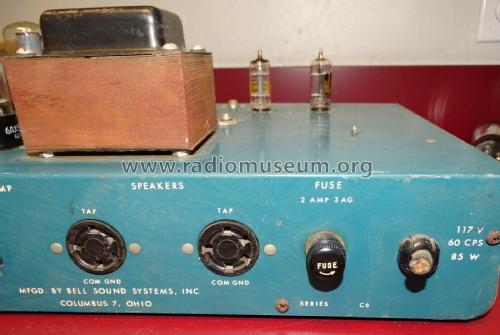

Pacemaker PM20
Bell Sound Systems; Columbus (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bell Sound Systems; Columbus (OH)
- Year
- 1958 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 197619
Sams Photofact Folders reference picture.

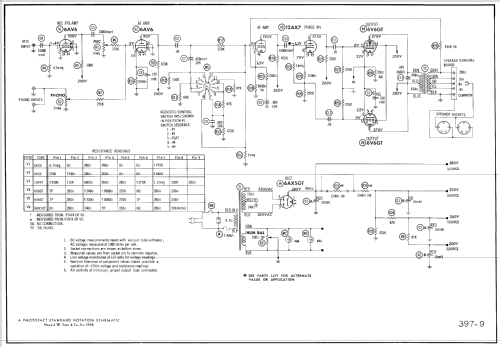

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Pacemaker PM20 - Bell Sound Systems; Columbus
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Pacemaker Model PM20 is an AC operated 3 Channel 20 Watt Audio Amplifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-58, Set 397, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
