• Country
• United States of America (USA)

• Manufacturer / Brand
• Bell Sound Systems; Columbus (OH)

• Year
• 1960 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 127472

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AX7 12AX7 12AX7 6V6GT 6V6GT 6V6GT 6V6GT 6CA4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

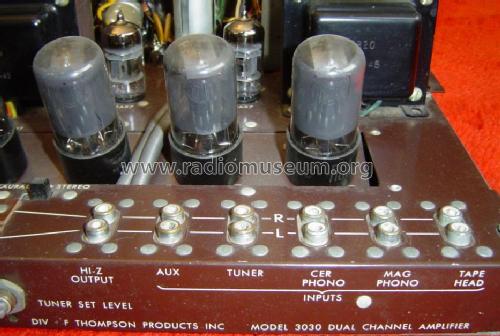

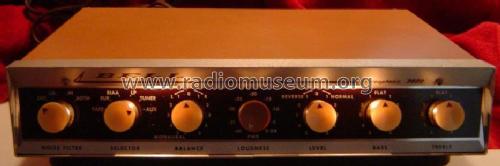

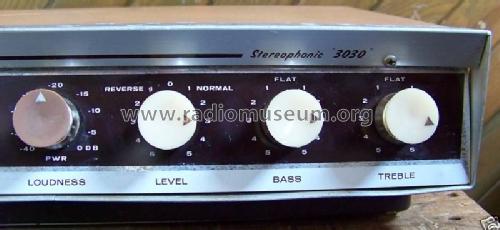

• Model: Stereophonic 3030 - Bell Sound Systems; Columbus

• Shape
• Book-shelf unit.

• Notes
• Dual Channel Amplifier, 2x 15W; several phono equalization settings.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 3-59, Set 434, Folder 4)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
