• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99509

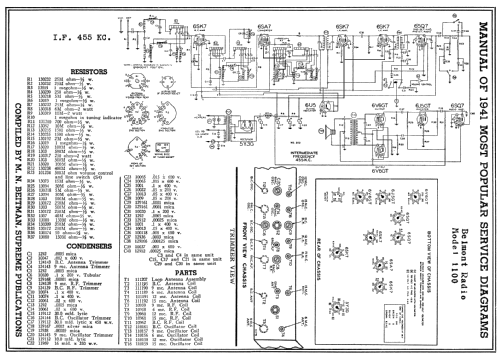

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SK7 6U5 6SQ7 6SQ7 6J5GT 6V6GT 6V6GT 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 1100 - Belmont Radio Corp. B.R.C.;

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 04, 1941

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.

• Other Models

• Here you find 442 models, 206 with images and 383 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Belmont Radio Corp. (B.R.C.); Chicago, Ill.
