• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1939 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34133

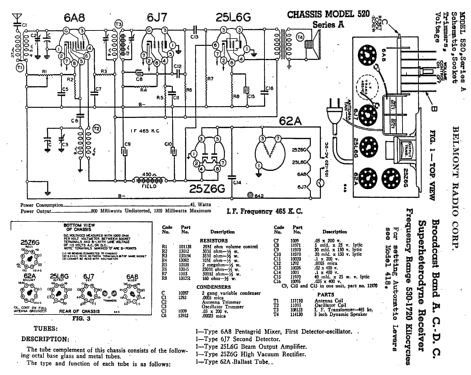

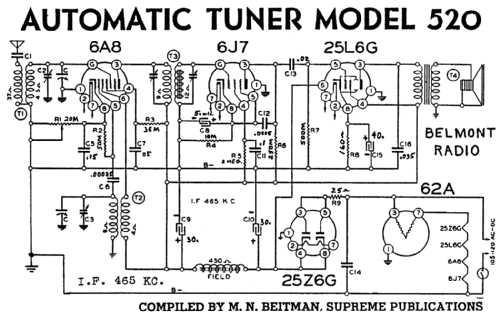

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8 6J7 25L6G 25Z6G

• Number of Transistors

• Semiconductors
• 62A

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 520 Ch= series A - Belmont Radio Corp. B.R.C.;

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Other Models

• Here you find 442 models, 206 with images and 383 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Belmont Radio Corp. (B.R.C.); Chicago, Ill.
