• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34135

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1A6 34 30 32 950

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 90 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 522 or 522-C - Belmont Radio Corp. B.R.C.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 20 x 11.25 x 10.75 inch / 508 x 286 x 273 mm

• Notes

• Range 535 to 1720 kc.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 74.)

• Literature/Schematics (3)

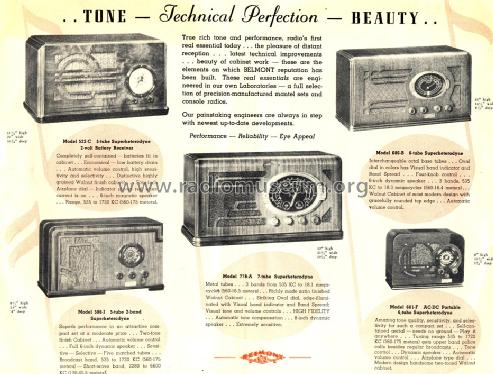

• Belmont Folder for 1937.
