• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243753

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 58 57 57 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 575 [2 knobs] - Belmont Radio Corp. B.R.C.;

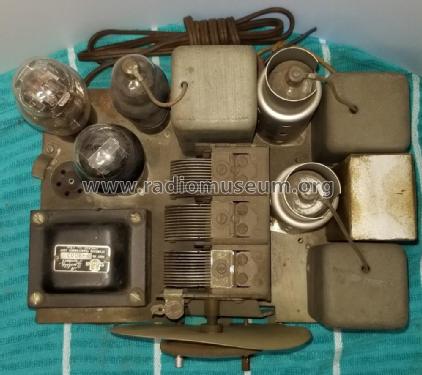

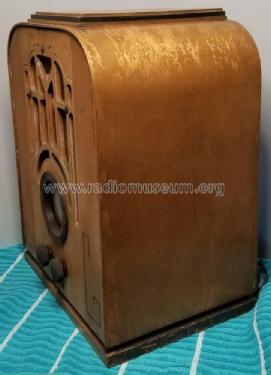

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• Some seen with "Freshman Masterpiece" tag under the knobs.

• Mentioned in
• Cathedral & Tombstone Radios (page 65.)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 5 = ca. 1934 and before (Rider 5-8 (Belmont))

• Literature/Schematics (2)
• Collector's Guide to Antique Radios (7th Edition) (page 48)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
