• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34325

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6J5GT 6SJ7 6SJ7 6F6G 6F6G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 801 - Belmont Radio Corp. B.R.C.;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 35.5 x 32.5 x 17 inch / 902 x 826 x 432 mm

• Notes

• Presence of a microphone amplifier. Built in loop antennna.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Literature/Schematics (3)

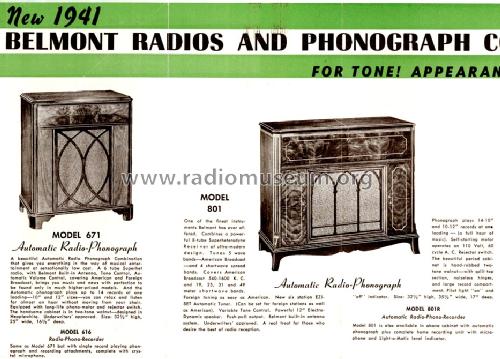

• Belmont Folder for 1941.
