Raytheon RC-1619B Ch= 16AY28
Belmont Radio Corp. (B.R.C.); Chicago, Ill.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Belmont Radio Corp. (B.R.C.); Chicago, Ill.
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 137234
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 27
- Valves / Tubes
- 6AG5 12AT7 6AU6 6AU6 6AU6 6AU6 6AL5 12AT7 6AU6 6AU6 6T8 or 6AL5 6AU6 6V6GT 6SN7GT 6SN7GT 6AL5 6SN7GT 6BG6G 6W4GT 1X2A or 1X2 5U4G 12BE6 12BA6 12AV6 50C5 35W4 17BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Raytheon RC-1619B Ch= 16AY28 - Belmont Radio Corp. B.R.C.;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Raytheon model RC-1619B is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Is a TV-AM-phono combination receiver equipped with chassis 16AY28, a VHF tuner and picture tube 17BP4. Typo on page 1 of service manual .TV only receivers have 22 tubes , combination receivers have 27 tubes.
- Literature/Schematics (1)

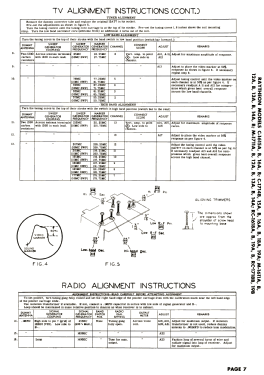

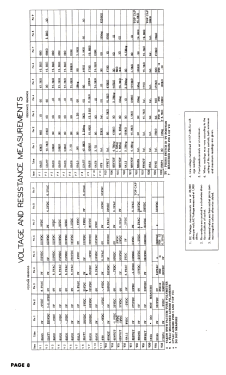

- Photofact Folder, Howard W. SAMS (Date 2-51, Set 124, Folder 8)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 132, folder 1, production changes bulletin 19, dated 5-51)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 442 models, 206 with images and 383 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Belmont Radio Corp. (B.R.C.); Chicago, Ill.
