• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1938 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 34175

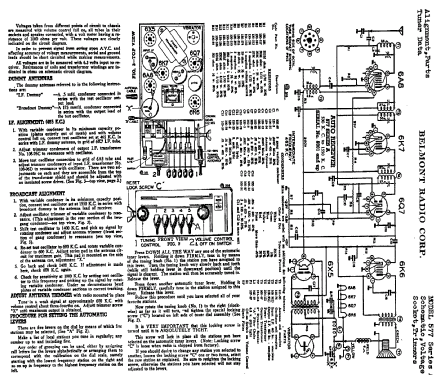

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6K6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org
• Model: 577 Ch= Series A [above S/N 5000] - Belmont Radio Corp. B.R.C.;

• Notes
• Vibrator for +B.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before
