• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34358

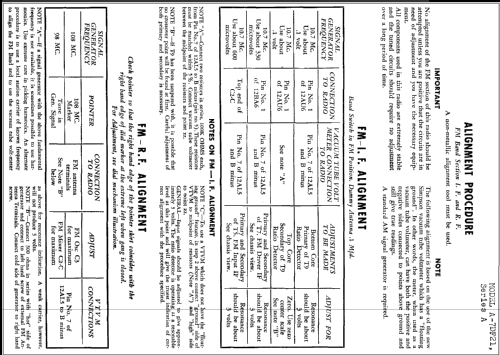

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 12BA7 12BA6 12AU6 12AL5 12AV6 50L6GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org

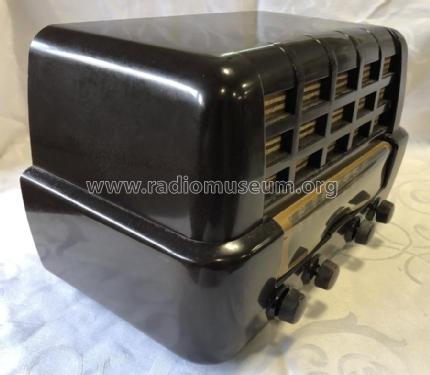

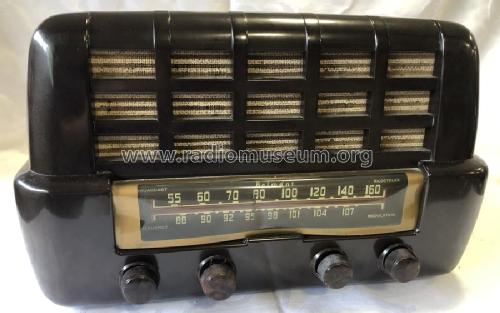

• Model: 7DF21 Ch= Series A - Belmont Radio Corp. B.R.C.;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Selenium Rectifier

• External source of data
• Ernst Erb

• Source of data
• Antique Radios, Johnson 1986

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Other Models

• Here you find 442 models, 206 with images and 383 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Belmont Radio Corp. (B.R.C.); Chicago, Ill.
