• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34369

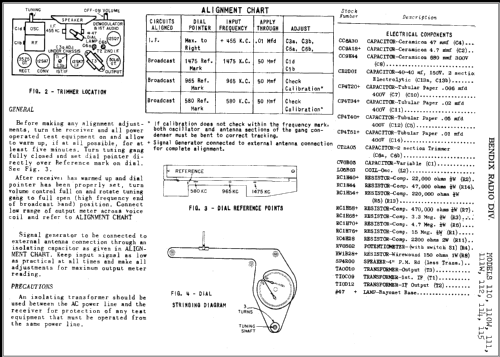

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 114 - Bendix Radio Division;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 285 x 185 x 160 mm / 11.2 x 7.3 x 6.3 inch

• Notes

• Color=Tan & Brown.



  Colours and material:

  plastic

  marbled brown/ tan

  marbled ivory/ maroon

• Net weight (2.2 lb = 1 kg)
• 2.340 kg / 5 lb 2.5 oz (5.154 lb)

• Price in first year of sale
• 30.00 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Table Top Radios Vol. 1 Stein 98 (page 45.)

• Literature/Schematics (2)
• Machine Age to Jet Age II

• Literature/Schematics (4)

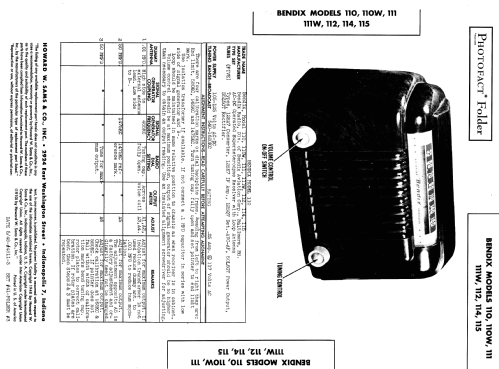

• Photofact Folder, Howard W. SAMS (Set 41, Date 5/48, Folder 4811-3)
